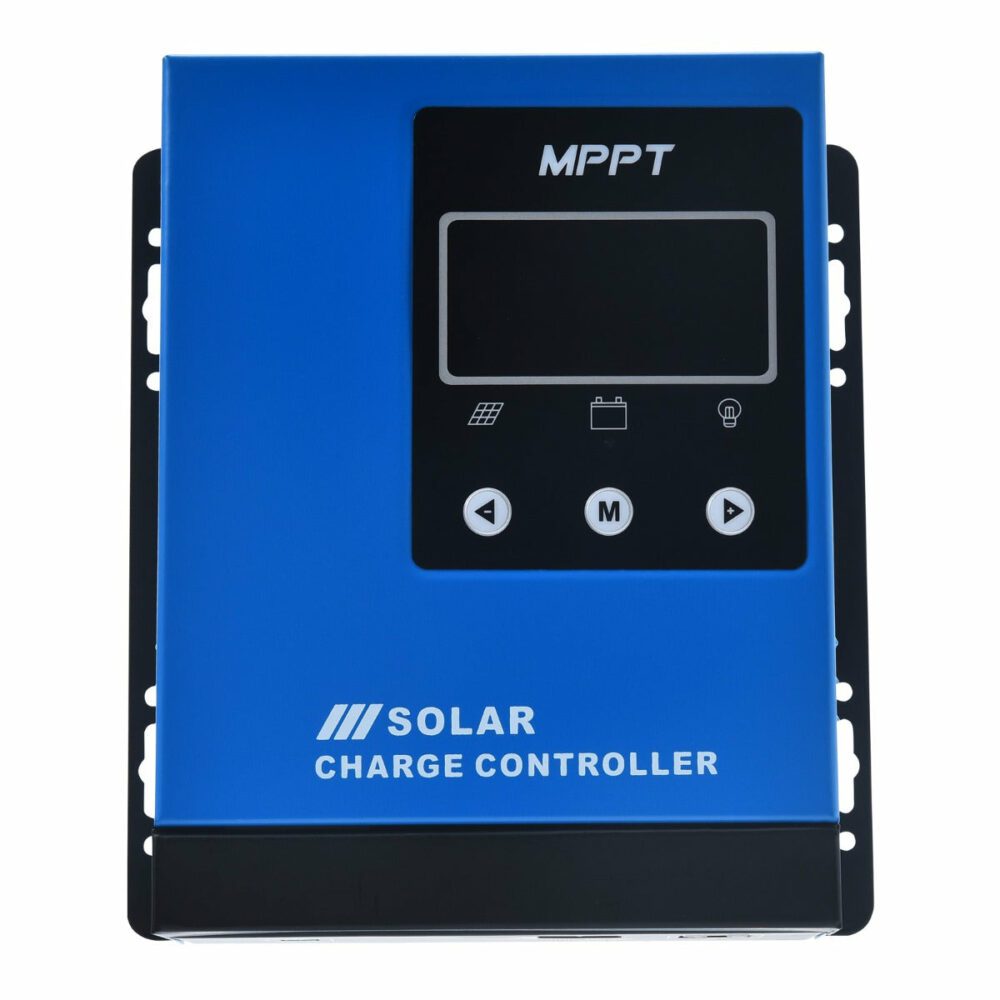

SOLAR CHARGE CONTROLLER 40A 12V/24V/36V/48V MPPT WITH BLUETOOTH

Optimise your off-grid power system with our solar charge controller with LCD display. Engineered for maximum efficiency, this MPPT controller 40A for off-grid systems ensures your battery bank receives the most energy possible, thanks to its advanced tracking capabilities. It also works seamlessly with almost all battery types and has protective features to keep your power pack safe from over-charging, over-discharging, reverse polarity, over-load, and over-temperature.

Advanced MPPT Technology for Maximum Efficiency

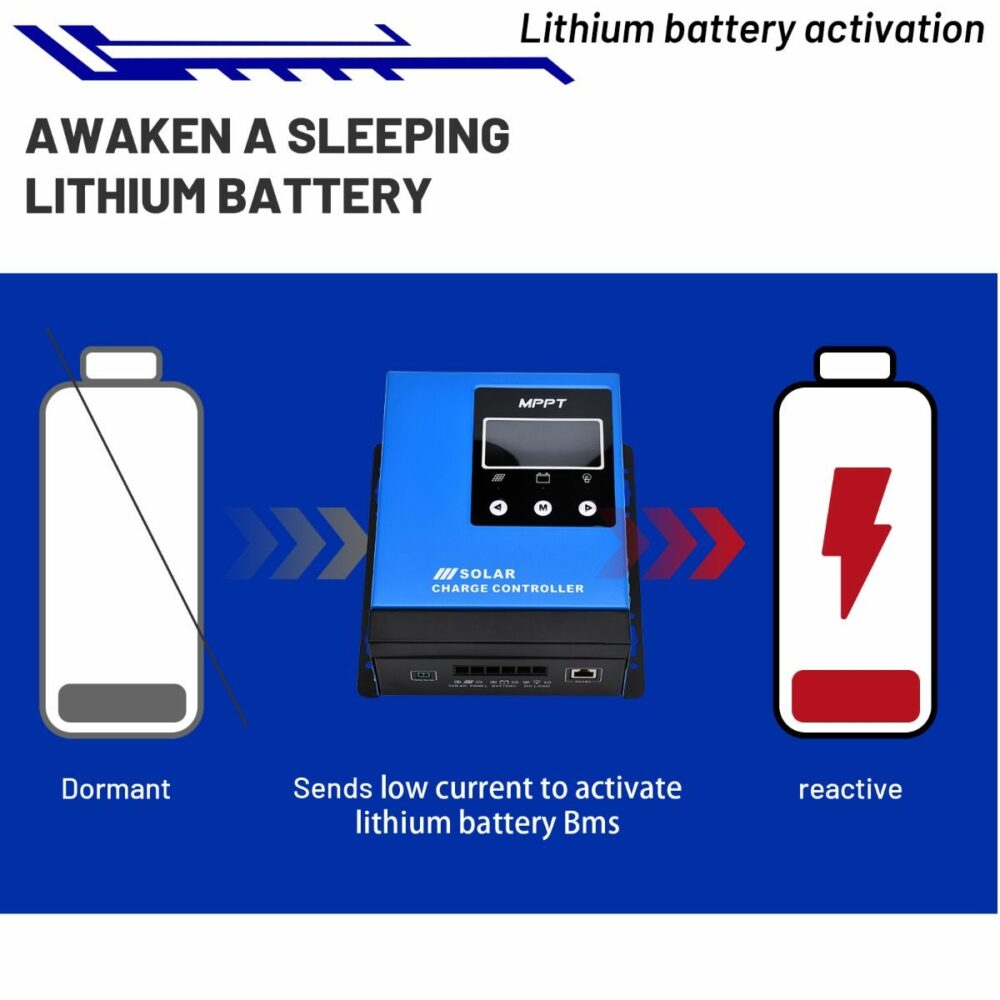

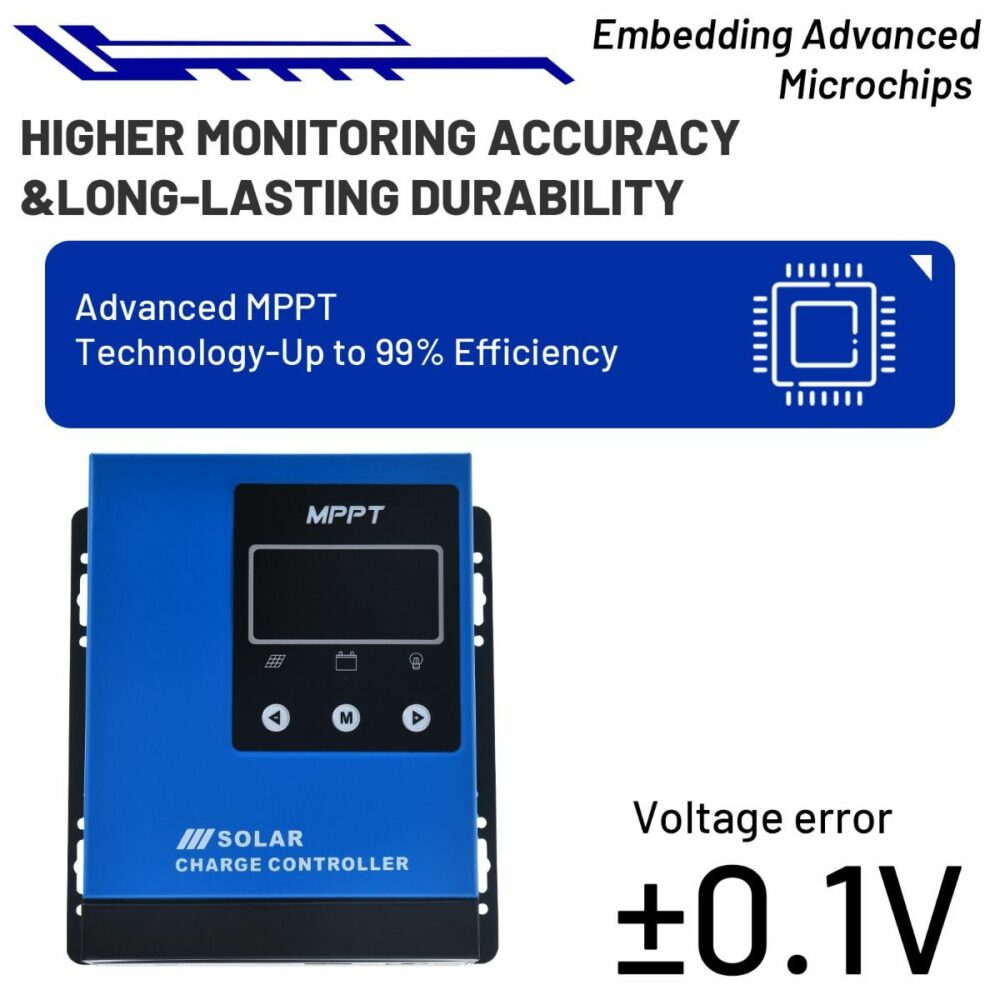

Harness the power of the sun with cutting-edge Maximum Power Point Tracking (MPPT) technology, offering up to 99% tracking efficiency. This ensures optimal charging and includes a unique lithium-reawakening function, giving new life to deeply discharged lithium batteries.

Comprehensive Battery Compatibility

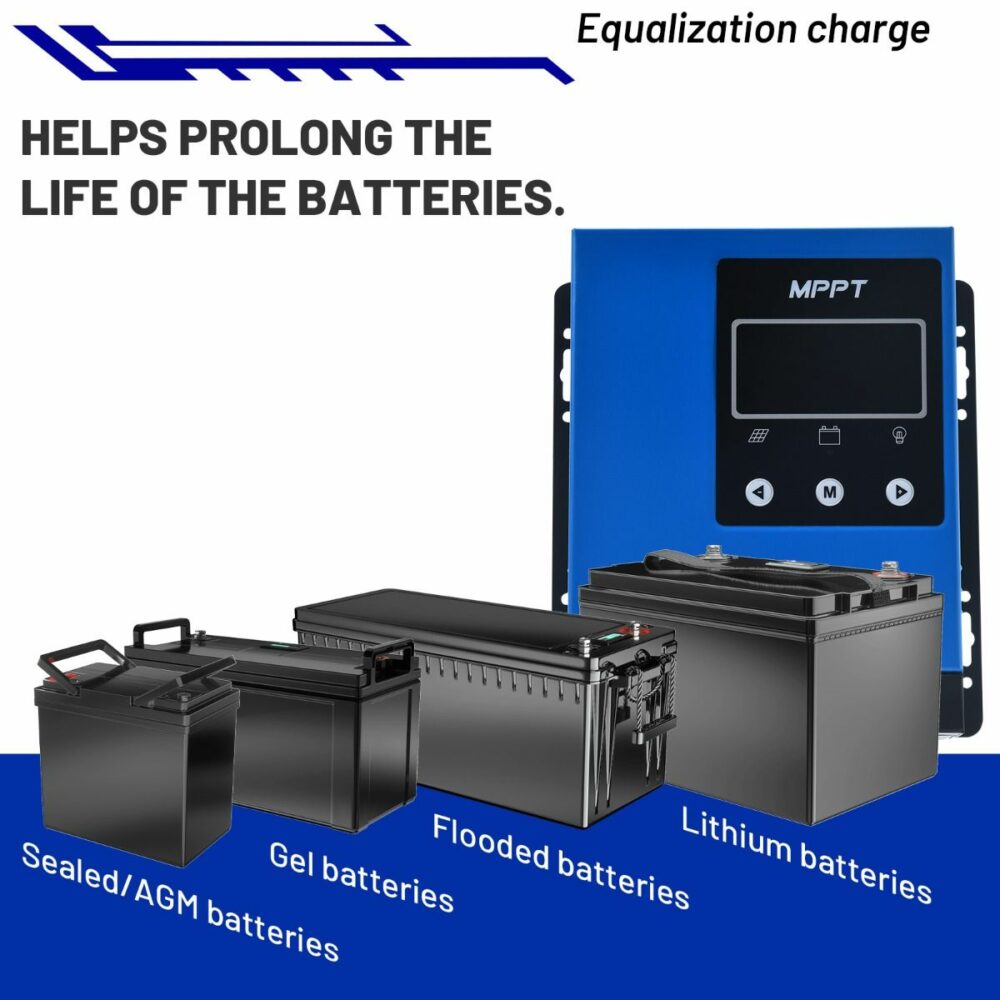

This MPPT controller 40A for off-grid systems automatically detects 12V, 24V, 36V, or 48V systems, making it a versatile solution for any setup. It’s pre-configured to support lead-acid (Gel, Flooded, Sealed) and lithium-ion phosphate batteries, providing seamless integration into any existing solar power system.

Bluetooth Connectivity for Easy Monitoring

Looking for the best Bluetooth solar regulator? This charge controller offers convenient wireless control and real-time system monitoring! Pair it with your smartphone to track performance, battery status, and other key metrics from anywhere.

Experience the difference of an advanced solar charge controller with LCD display that combines efficiency, durability, and smart technology to elevate your solar power system’s performance. Shop yours at Outbax now!

SPECIFICATIONS

Rated Charge Current:	40A
Minimum PV Voltage:	20V/40V/60V/80V
System Rated Voltage:	12V/24V/36V/48V Auto Recognized
Rated Discharge Current:	20A
Own Consumption:	≤35mA(48V)
MPPT Highest Accuracy:	99%
Maximum Charging Efficiency:	97%
Charging Control Mode:	Multi-stage(MPPT, Absorption, Float,Equalization,CV)
Load Control Mode:	Normal, light control, light and timing control, timing control, reverse light control
Light Control Point Voltage:	5V/10V/15V/20V
Operating Temperature:	-20℃~+55℃
Storage Temperature:	-30℃~+80℃
Grounded Type:	Positive grounded
Communication Mode:	RS485,RJ45 port
